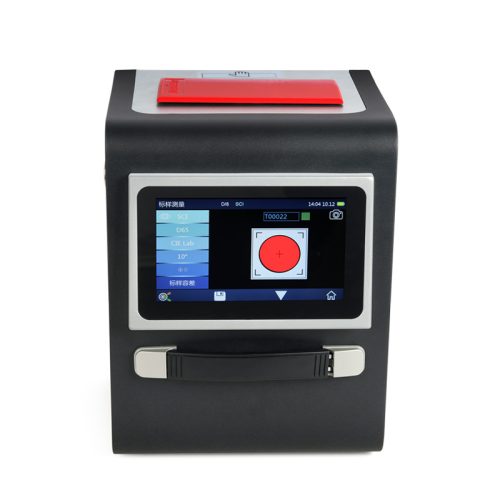

Benchtop spectrophotometer Syntes Labs BL 45
Benchtop spectrophotometer with 45/0 measuring geometry for printing and packaging professionals
Описание и назначение устройства
45/0 optical benchtop spectrophotometer, with 256 pixels dual array CMOS image sensor, imported white board, and gives consideration to the speed of measurement and the convenience of operation. It features with repeatability Δ E * ab easily control within 0.02, and inner instrument errors Δ E * ab control within 0.15. This accuracy measurement makes it good to use in the lab color accurate analysis and transfer. It is also good to measure the brightness factor and color coordinates of traffic signs, markings and reflective films. Including GB 2893 and GB/T 18833 standard colors, it can customize the rectangular tolerance of polygons manually.
Applications:
Benchtop spectrophotometer color measurement instrument is equipped with a single customized 18/8/4mm measurement diameter, used for accurate color measurement and quality control in plastic electronics, paint and ink, textile and garment printing and dyeing, printing, ceramics and other industries; It can be also used for fluorescence sample measurement. In addition, it is suitable for measuring the brightness factor and chromaticity coordinate of traffic road signs, marking lines and reflective film. It contains GB 2893 and GB/T 18833 standard colors and it can customize the rectangular tolerance of polygons manually.
Особенности
- Adopt combination full spectrum LED light source and UV light source. Full band balanced LED light source ensures sufficient spectral distribution in visible light range, avoids the spectral loss of white LED in specific band, ensures the accuracy of instrument measurement speed and measurement results, and professional UV light source ensures more reliable UV testing.
- A variety of color space, a variety of observation light sources. Benchtop spectrophotometer color measurement instrument provides CIE LAB,XYZ,Yxy,LCh,CIE LUV,s-RGB,βxy,Munsell(C/2) color space, and D65,A,C,D50,F2(CWF),F7(DLF),F10(TPL5),F11(TL84),F12(TL83/U30) light sources, which can meet the special measurement requirements under different measurement conditions.
- Calirbation Certificate. Each spectrophotometer has been verified and tested. After leaving the factory, each instrument is verified according to the measurement standards of authoritative verification departments, and the measurement data are traceable to the National Metrotechnical Institute to ensure the authority of the instrument test data.
- Industrial-grade HD touch screen, easy to use user interface. Using 7-inch industrial grade hd touch screen, smooth operation, the user interface is easy to use and it makes the operation to become comfortable and convenient.
- Color management software. Quality management software is suitable for quality monitoring and color data management in various industries. Data the user’s color management, compare color differences, generate test reports, provide multiple color space measurement data, and customize the customer’s color management.

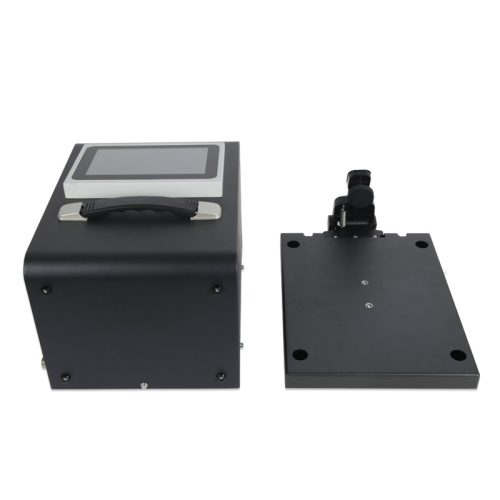

- Optional Accessory. Micro printer, foot switch, rotating bracket can be freely selected according to the needs.
Форма заказа и получения информации о продукте
Заполните форму ниже для получения дополнительной информации о BL 45 и наш представитель свяжется с вами в самое ближайшее время.
Характеристики и спецификации
| Optical Geometry | 45/0(45 ring-shaped illumination, 0 degree viewing angle) Comply to CIE No.15，GB/T 3978,GB 2893,GB/T 18833,ISO7724-1,ASTM E1164,DIN5033 Teil7 |
| Light Source | Combined full spectrum LED light source, UV light source |
| Spectrophotometric Mode | Flat Grating |
| Sensors | 256 Image Element Double Array CMOS Image Sensor |
| Wavelength Range | 400~700nm |
| Wavelength Interval | 10nm |
| Semiband Width | 10nm |
| Measured Reflectance Range | 0~200% |
| Measuring Aperture | Customized single aperture, LAV: Φ18mm / Φ20mm; MAV: Φ8mm / Φ10mm; SAV: Φ4mm / Φ5mm |
| Specular Component | 45/0 |
| Color Space | CIE L*a*b*, XYZ, Yxy, L*C*h°, CIE L*u*v*, sRGB, Hunter Lab, βxy, DIN Lab99, Munsell (C/2) |
| Color Difference Formula | ΔE*ab 76, ΔE*uv, ΔE*94, ΔE*cmc(2:1),ΔE*cmc(1:1), ΔE*00, DINΔE99, ΔE(Hunter) |
| Other Colorimetric Index | WI(ASTM E313,CIE/ISO,AATCC,Hunter)， YI(ASTM D1925,ASTM 313), Metamerism Index MI, Staining Fastness, Color Fastness, Color Strength, Opacity 8° Glossiness,555 tone classification |
| Observer Angle | 2°/10° |
| Illuminant | D65, A, C, D50, D55, D75, F1, F2 (CWF), F3, F4, F5, F6, F7 (DLF), F8, F9, F10 (TPL5), F11 (TL84), F12 (TL83/ U30) |
| Measuring Time | About 1.8s |
| Repeatability | Chromaticity value: MAV/SCI, within ΔE*ab 0.02 ( When a white calibration plate is measured 30 times at 5 second intervals after white calibration) |
| Inter-instrument Error | MAV/SCI, Within ΔE*ab 0.15 (Average for 12 BCRA Series II color tiles) |
| Measurement Mode | Single Measurement, Average Measurement(2-99times) |
| Dimension | L*W*H=370X240X260mm |
| Weight | About 7.8kg |
| Power supply | AC 24V, 3A Power adapter power supply |
| Illuminant Life Span | 5 years, more than 3 million times measurements |
| Display | 7-inch TFT color LCD, Capacitive Touch Screen |
| Data Port | USB, Bluetooth ®5.0, trigger switch interface |
| Data Storage | Standard 1000 Pcs, Sample 30000 Pcs |
| Language | Simplified Chinese, English, Traditional Chinese |
| Operating Environment | 0~40℃, 0~85%RH (no condensing), Altitude < 2000m |
| Storage Environment | -20~50℃, 0~85%RH (no condensing) |
| Standard Accessory | Power Adapter, USB Cable, User Guide, PC Software(Download from office website), White and Black Calibration Cavity, Protective Cover, Aperture (Optional Aperture) |
| Optional Accessory | Micro Printer, Foot Switch, Rotating Bracket |
